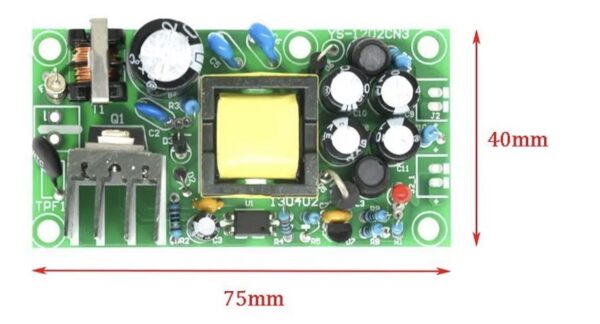

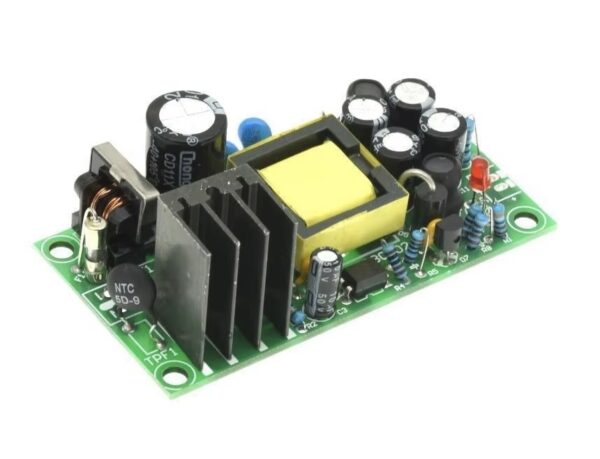

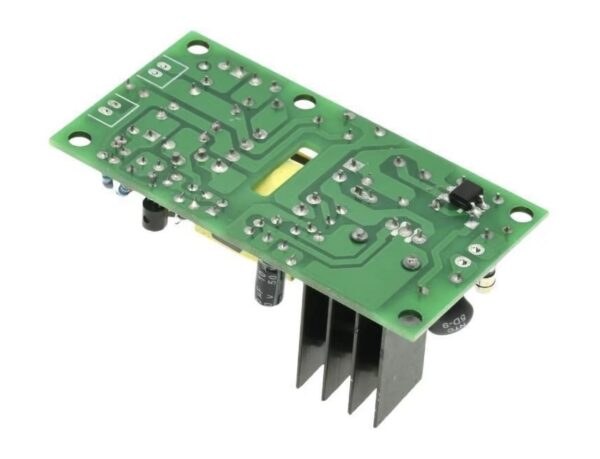

Dual Output Fully Isolated AC-DC Switching Power Supply Module

Description Functional features and parameter introduction:  this power supply is fully isolated industrial-level built-in power supply module, with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ V wide voltage input, high and low voltage isolation, DC12V1A\5V1A dual voltage isolation output, 431 regulation, output circuit with EMI filter, indicator light, mounting hole, high cost performance Use Environment: Project Unit  Minimum value Typical values tMaximum value Test conditions operating temperature ℃ -20 60 relative humidity %RH 40 90 no cooling Technical Requirements: 1. Input characteristics Project Unit Minimum value Typical values Maximum value Test conditions input voltage range V ac 85 110/220 265 full load conditions input current A 0.027(AC110V) 0.0136(AC220V) full load conditions input inrush current A 20 full load conditions 2. The output characteristic                     2.1. The output of the adjusted rate characteristics output voltage the minimum current the maximum current peak current output voltage range ripple 12V 0A 1A 1.2A 11.80 ~ 12.5V 150mV 5V 0A 1A 1.2A 4.90 ~ 5.1V 80mV 2.2. Other output characteristics project unit the minimum value typical values the maximum value test conditions output power W 0 17 18.5 the DC output power the output efficiency % 84 rated load switcher overshoot % 10 the output of the rise time mS 100   3. Protection function project unit yes/No the minimum value typical values the maximum value recovery Characteristics output voltage V 13 13.5 locked, recovered after restart  5 5.4 locked, recovered after restart output over work the rate of protection there are 17 19 locked, recovered after restart short-circuit protection there are locked, recovered after restart temperature Protection there are 90 ℃ 105 ℃ locked, recovered after restart over-current protection there are locked, recovered after restart Packing List: 1 x Dual Output Fully Isolated AC-DC Switching Power Supply Module
